ProLake 3.11 Aeration System Electric Pond 11 Acre

Clean Water Around the Clock With the ProLake3 3.11 Aeration System

Struggling with murky water, foul odor, or sludge in a pond that stretches across several acres? Stagnant water invites unwanted bacteria and scum that make your water look unappealing and put your fish at risk. Give your entire water column the oxygen it needs. With three ½ horsepower compressors feeding up to 11 Duraplate diffusers, this system keeps water measuring up to 11 surface acres clear, healthy, and problem free year after year.

Variant comparison

• Pond Size: Aerates ponds and lakes up to 11 surface acres.
• Oxygen Coverage: Reaches the entire water column, with diffusers working at depths up to 50 feet.
• Airflow: Three ½ HP compressors deliver up to 15.9 CFM through non-clogging, self-cleaning Duraplate diffusers, with each compressor delivering 5.3 CFM.
• Diffuser Option: Choose a version with 11 Duraplate diffusers included, or a Cabinet Only option if you already own diffusers.
• Durability: Diffusers withstand 500+ lbs, with shrouded parts protected from debris and predators.
• Cabinet Build: 3/4 inch thick, sound-deadening housing with 1" ASTM certified acoustical foam for quiet 24/7 operation at 50/60 DB.
• Cooling: High volume cooling blowers keep compressors running smoothly.
• Manifold: Adjustable, brushed aluminum with a 3-4 port design for easy expansion.
• Remote Placement: Cabinet can sit up to 4,000 feet from the water using a ½ inch PVC line to a remote manifold.
• Voltage: Available in 115V or 230V to match your site's power setup.
• Maintenance: Runs day and night with very little upkeep needed.
• Eco-Friendly: A clean, green way to keep water clear all year round.
• Water Quality: Prevents stagnation, odor, sludge, and bacteria buildup while supporting healthier fish and aquatic life.
• Applications: Suited for HOAs, golf courses, farm ponds, aquaculture ponds, retention ponds, ski parks, and zoological displays.

Oxygen That Reaches Every Depth of Your Pond

Fish and aquatic life depend on dissolved oxygen to live longer and stay healthy. This system pushes air deep and moves the water so it never goes stagnant, even in deeper ponds where trouble usually starts. In the supplier's product data, ProLake 3 systems are described as designed to clean and clear smaller ponds and lakes measuring up to 12 surface acres.

• Aerates ponds and lakes up to 11 acres
• Oxygenates the entire water column
• Diffusers work at depths of up to 50 feet
• Delivers up to 15.9 CFM across the system, with each compressor delivering 5.3 CFM
• Improves water clarity and quality

Still troubled by odor, sludge, or fish kills in your water system? You can get a free pond analysis and recommendations.

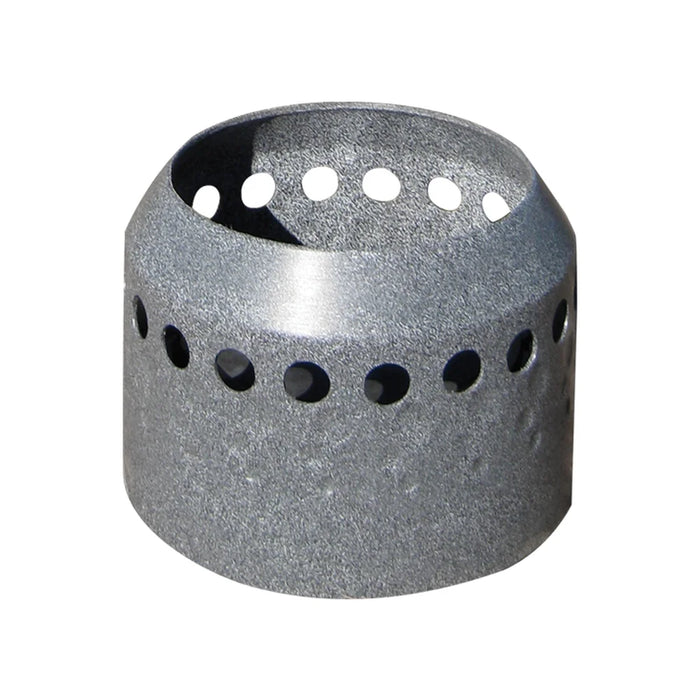

Non-Clogging Duraplate Diffusers

The Duraplate diffusers are the workhorses that release air into your water. They are non-clogging and self-cleaning, so you spend less time on maintenance and more time enjoying clear water.

• Rugged enough to withstand 500+ lbs
• Shrouded, protected parts keep out debris and predators
• Fed by durable ½ inch airline

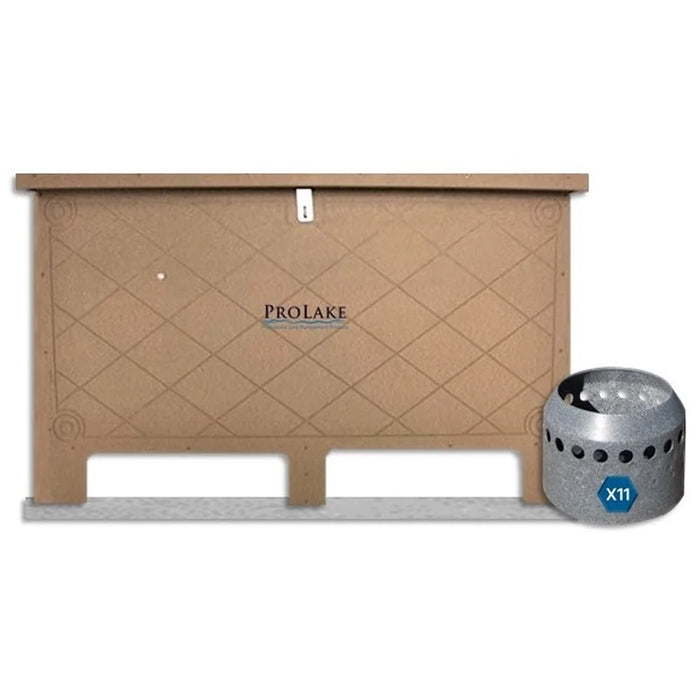

Included diffusers: choose the version with 11 Duraplate diffusers included, or select a Cabinet Only option with no diffusers if you already have yours.

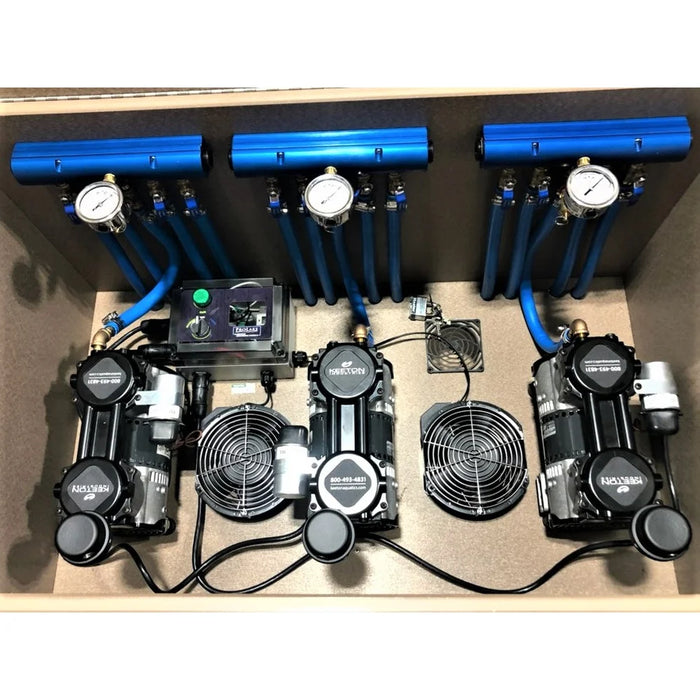

Inside the ProLake 3 Cabinet

Everything that powers your water sits inside a durable, sound-deadening cabinet built to run 24/7. Open it up and you will find serious hardware working together.

• Three custom-built ½ HP compressors
• High volume cooling blowers to keep temperatures down
• Fully adjustable, brushed aluminum manifolds with a 3-4 port design for easy expansion
• 3/4 inch thick cabinet walls
• 1" ASTM certified acoustical sound-deadening foam for quiet operation at 50/60 DB

Flexible Placement for a Remote ProLake 3.11 Pond Aerator

Water not close to your power source? No problem. The cabinet can be installed away from the water's edge, right where electrical hook-ups are most convenient.

• Run a ½ inch PVC line up to 4,000 feet from the cabinet to a remote manifold
• From the remote manifold, airlines carry air to the Duraplate diffusers
• Requires very little maintenance while running day and night

Choose 115V or 230V on the ProLake 3.11 Electric Aerator

This electric system is an eco-friendly way to keep your water clean all year. Pick the voltage that matches your site:

• Voltage: available in 115V or 230V
• 115V configuration draws 12.9 AMPS across the three ½ HP compressors
• Rated at 655 Watts

Set Your Own Schedule With the ProLake3 3.11 Electric Aerator

Want full control over when your water gets aerated? The UL Listed programmable timer lets you set the exact hours you want the system running, so you decide the schedule instead of leaving it to chance.

• Seven-day, 24-hour control
• Power outage back up and permanent schedule retention
• Manual override and locking hasp

Note that the timer is not included with this configuration and can be added separately.

Built for HOAs, Golf Courses, and Working Ponds

This system fits a wide range of water bodies where clean, oxygenated water matters:

• HOAs and recreational ponds and lakes
• Golf courses and ski parks
• Retention ponds and industrial retention ponds
• Farm ponds and aquaculture ponds
• Zoological displays

Product Documents

Additional product resources are available, including the ProLake3 Data Sheet and the Electric Installation Manual, along with product videos.

Product Specs

Product Attachments

ProLake 3.11 Spec Sheet
