ProLake 3.10 Aeration System Electric 1/2 HP Up To 10 Acres

Keep Your Pond Clean Year Round With the ProLake 3.10 Electric Aerator

Is your pond turning murky, smelly, or choked with algae? Stagnant water starves fish of oxygen and lets bacteria and scum take over. Push clean, fresh air deep into your water with a system built to oxygenate the entire water column of ponds and lakes up to 10 surface acres. Three powerful compressors, rugged non-clogging diffusers, and a cabinet you can install away from the water's edge give you clearer, healthier water that stays problem free for years.

Variant comparison

• Coverage: Aerates ponds and lakes up to 10 surface acres, keeping water clean and clear year round.
• Compressors: Three ½ HP compressors deliver up to 15.9 CFM of air for full water column oxygenation.
• Power choice: Available in 115V or 230V configurations.
• Diffusers: Duraplate diffusers are self-cleaning, non-clogging, and rated to withstand 500+ lbs; included on the diffuser options, not included on Cabinet Only options.
• Diffuser depth: Rated for a maximum depth of 50 feet.
• Cabinet: Sound-deadening, ¾ inch thick cabinet with 1" ASTM certified acoustical foam runs at just 50/60 DB.
• Remote install: Cabinet can sit up to 4,000 feet from the water via ½ inch PVC line to a remote manifold.
• Operation: Built for 24/7 use, day and night, all year long.
• Water health: Adds oxygen that keeps fish and aquatic life healthier while preventing stagnation, bacteria, and scum.
• Maintenance: Low upkeep once installed, with a fully adjustable brushed aluminum manifold for airflow control and easy expansion.
• Applications: Fits HOAs, golf courses, recreational ponds & lakes, farm ponds, retention ponds, industrial retention ponds, aquaculture ponds, ski parks, and zoological displays.

Three ½ HP Compressors That Move Serious Air

At the heart of this system sit three custom-built ½ horsepower compressors that deliver up to 15.9 CFM of air to your diffusers. That volume of air is what lifts oxygen through even the deepest sections of your pond.

• High volume cooling blowers keep the compressors running cool for reliable 24/7 operation
• Fully adjustable brushed aluminum manifold with a 3 to 4 port design lets you fine-tune airflow and expand later
• Housed in a durable, sound-deadening cabinet lined with 1" ASTM certified acoustical foam, running at just 50/60 DB
• Choose your power: 115V or 230V compressors across every configuration

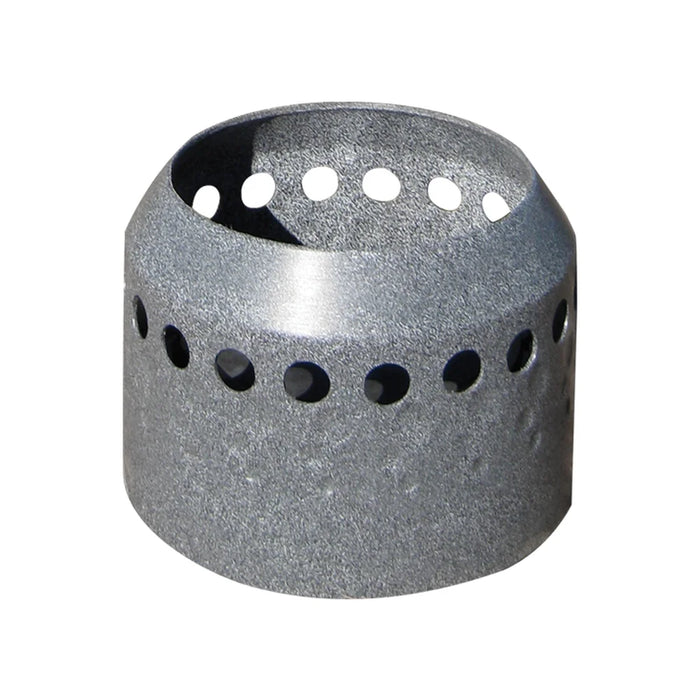

Non-Clogging Self-Cleaning Duraplate Diffusers

The diffusers do the real work of getting oxygen into your water, and these are built to last. Each Duraplate™ diffuser is engineered to withstand 500+ lbs, with shrouded and protected parts that keep debris and predators out. They stay clean on their own, so you spend less time on upkeep.

• Self-cleaning, non-clogging design for low maintenance
• Rated for a maximum diffuser depth of 50 feet

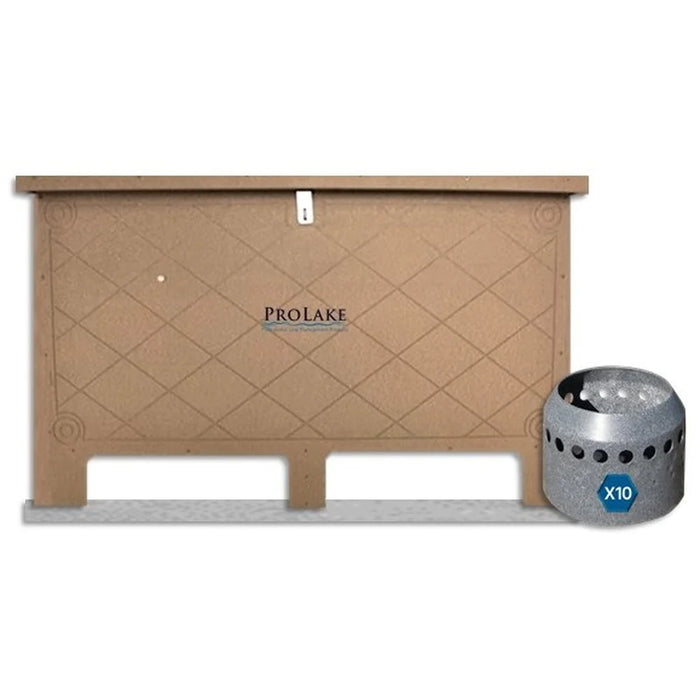

• What's Included: the 115V and 230V "10 Duraplate Diffusers" options ship with 10 diffusers; the 115V and 230V "Cabinet Only" options include no diffusers

The Programmable Timer Puts You in Control of the ProLake3 3.10 Electric Aerator

ProLake systems are the only aeration systems in the industry to offer a programmable timer, so you can control the exact times you want to aerate your body of water.

• UL Listed timer featuring seven-day, 24-hour control, power-outage backup, manual override, permanent schedule retention, and a locking hasp
• Programmable timer is not included with this system

Install the ProLake 3.10 Pond Aerator Far From the Water

Got electrical hookups nowhere near the shoreline? No problem. You can position the cabinet where power is convenient and still aerate a distant body of water.

• Run a ½ inch PVC line up to 4,000 feet from the cabinet to a remote manifold
• From the remote manifold, airlines carry air out to the Duraplate™ diffusers
• Durable 3/4 inch thick cabinet measuring 40"W x 24"L x 24"T stands up to the elements
• The system runs a durable ½ inch airline; the Alpine™ ½" weighted airline is not included with this system

This flexibility makes the system a strong fit for HOAs, golf courses, recreational ponds & lakes, retention ponds, industrial retention ponds, farm ponds, aquaculture ponds, ski parks, and zoological displays.

Why the ProLake3 3.10 Aeration System Runs Clean and Green

Adding air to your water is one of the simplest ways to protect the life in it. Oxygen keeps fish and aquatic life living longer and healthier, while constant circulation stops the stagnation that breeds bacteria and unsightly scum.

• Designed for 24/7 operation, day and night, all year long
• An eco-friendly way to improve water clarity and quality
• Requires very little maintenance once installed

Product Specs

Product Attachments

ProLake 3.10 Spec Sheet
